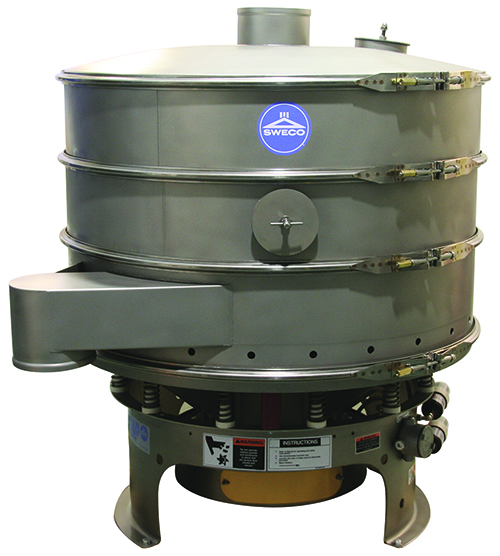

HIGH-TEMP HOT OIL SEPARATOR
The SWECO High-Temp Separator offers a solution for the complications associated with high temperature applications. SWECO Engineers have employed innovative cooling techniques to build a more durable and heat resistant separator.
Even though the High-Temp Separator was engineered specifically for hot cooking oil applications, the separator can be used with many other high temperature applications.
BRASS MOTOR BEARING CAGE
The High-Temp Separator features a motion generator with a brass cage bearing instead of the conventional polyamide cage. The brass cage increases the bearing temperature limit significantly, providing added protection against heat degradation of the cage itself and ultimately the grease lubricating the motor bearings.
HIGH-TEMP BRAIDED HOSES
Braided stainless steel hoses are used for all lube lines from the separator’s TechLube™ Systems to the motion generator. These stainless-steel hoses provide protection from higher temperatures, reducing the chances of lubrication degradation. And the stainless-steel hoses will not be compromised by external hot oil drips.
STAINLESS STEEL INSPECTION OPENINGS
To virtually eliminate the possibility of material degradation, the cover and frame inspection openings for the High-Temp Separator will have stainless steel covers, high-temp gasketing, and a T-handle device for easy opening instead of the standard rubber cover insert.
